NOxCANg - Suitable for diesel and gas turbine engines

The ECM NOxCANg is a versatile and highly integratable NOx, Lambda and O2 measurement device. The NOxCANg uses a ceramic NOx sensor that is mounted in the exhaust of the engine and communicates measured NOx, Lambda, O2 and all sensor parameters via its CAN port.

Parameters measured

  • NOx
  • Lambda
  • AFR
  • %O2
  • Equivalence Ratio (Phi)
  • Exhaust Pressure*

NOxCANg Specifications

NOxCANg Parameter Range Accuracy
NOx Range 0-5000 ppm
(Lambda >1 Only)
+/- 15 ppm (0 to 1000 ppm)
+/-1.5% Elsewhere
Lambda Range 0.4 to 25 +/- 0.008 (at Lambda =1)
AFR Range 6 to 364 +/- 0.15 AFR (at 14.6 AFR)
%O2 Range 0 to 25% +/- 0.4 (at 0 to 2% O2)
*Pressure Range 0 517 kPa +/- 5.2 kPa

Features

  • Output direct to CAN Programmable Communication
  • Response time of less than 150 ms
  • Programmable Fuel Type (as defined by H:C. O:C, N:C Ratio)
  • Fast Response
  • Can be field re-calibrated
  • Environmentally Sealed

Supplied

  • Sensor Control Module
  • NOx Sensor (NGK type)
  • All required cabling
  • Boss/Bung Set
  • Operating Manual

Options

  • Display head (See the NOx5210) to include 6 x Analogue outputs
  • * Optional Pressure Compensation
  • dashCAN  - local display only

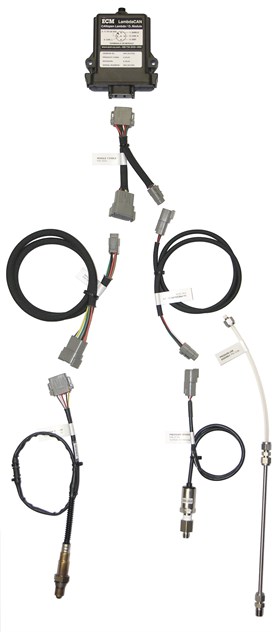

522_MOD_MOD

NOxCAN Specifications
Size: 173.4 KB (177,569 bytes)

Labcell Automotive Instrumentation Brochure
Size: 858.0 KB (878,610 bytes)

Quotation Request

Email us to request a quotation for the NOxCANg Module
